OPERATING CONDITIONS
- Maximum fluid temperature up to 35ºC
- Maximum sand content: 0.25%
- Maximum immersion: 50M(Can be with or without oil-filled )
- Minimum well diameter: 2"/3"/4"
MOTOR AND PUMP
- Rewindable motor, full obturated screen motor
- Single phase: 220v-240v/50hz
- Equip with start control box or digital auto-control box
- Pumps are designed by casing stressed
| model | power | Volt. | Flow | Head | Pipe dia. | package dimension & GW | ||||
| HP | KW | V | m3/h | m | inch | L | W | H | KG | |
| QGD1.8-50-0.5 | 0.7 | 0.5 | 220 | 1.8 | 50 | 1" | 510 | 140 | 165 | 14.5 |
| QGD1.8-100-0.75 | 1 | 0.75 | 220/380 | 1.8 | 100 | 1" | 620 | 150 | 190 | 28 |

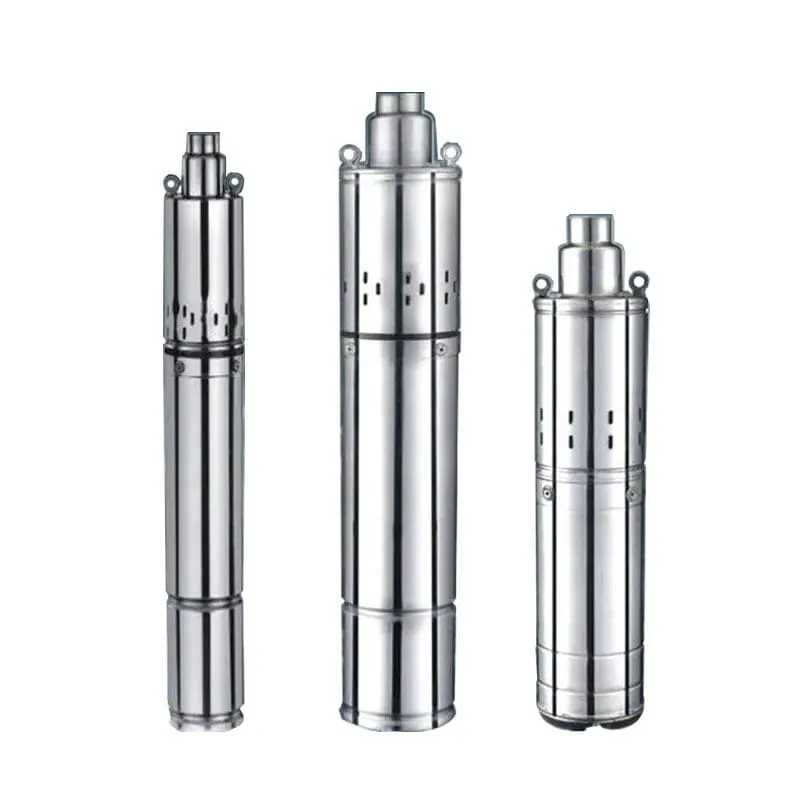

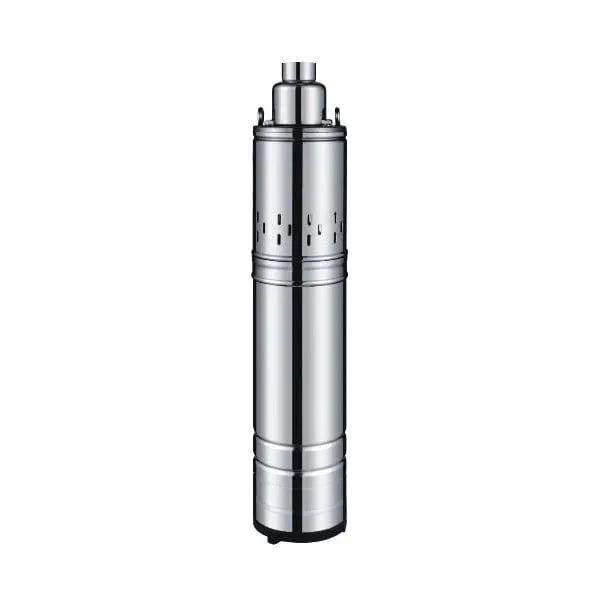

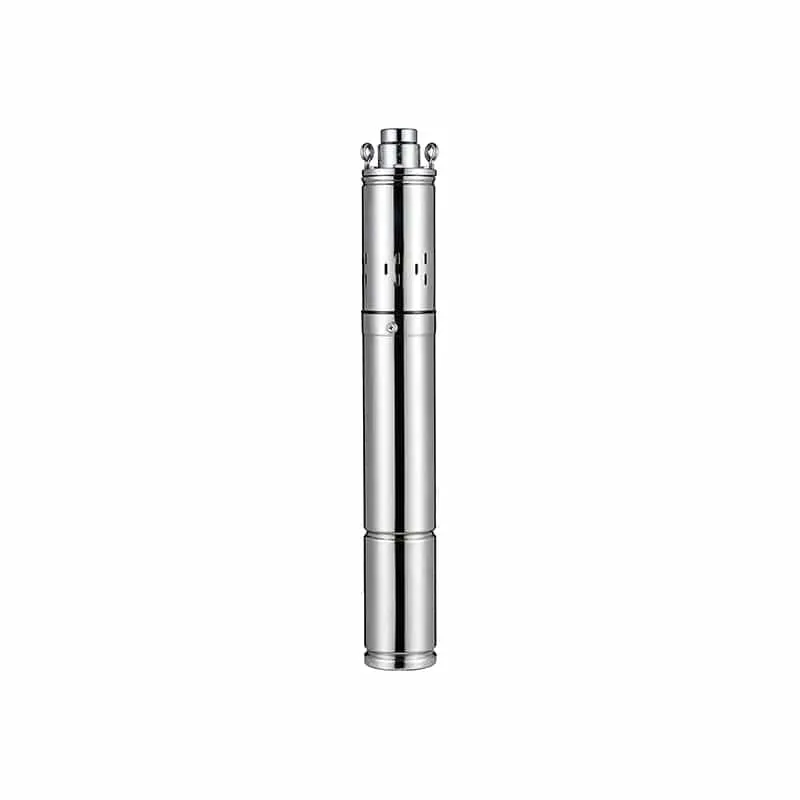

Ensure efficient water pumping with the LuckyPro 3" QGD Screw Submersible Pump, available in both 0.7HP and 1.0HP variants. This reliable submersible pump is perfect for wells, boreholes, and water transfer tasks in residential and agricultural settings. Its screw design allows for smooth operation even in low-water conditions, delivering consistent performance.
